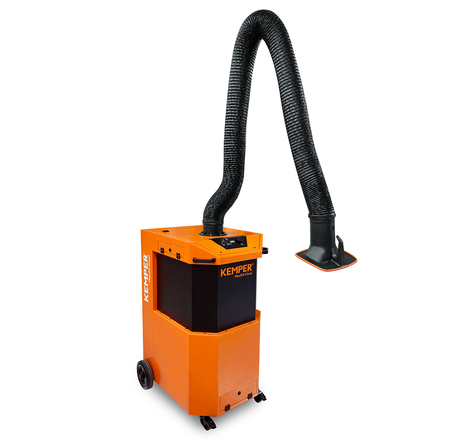

The welding smoke extraction unit MaxiFil Clean has a self-cleaning filter in combination with an automatic, contamination-freedust disposal. Its high mobility and a 360-degree operating radius make it the ideal device for continuous use. The simple filter unit easily handles applications with large amounts of smoke and dust.
| Filter Method | Cleanable Filter |
| Filter Cleaning Method | Rotating Nozzle |
| Filter Surface | 15 m² |
| Type of Filter | Filter Cartridge |
| Filter Material | ePTFE Membrane |
| Filter Efficiency | > 99.9 % |
| Dust Classification | M |
| Additional Filters | Spark Pre-Separator Made of Aluminium Mesh |
| Extraction Capacity | 1450 m³/h |
| Dimensions (w x d x h) | 834 x 973 x 1350 mm |
| Weight | 197 kg |
| Motor Power | 2.2 kW |
| Power Supply | 3 x 400 V / 50 Hz |
| Rated Current | 4.4 A |
| Control Voltage | 24 V, DC |
| Noise Level | 73 dB(A) |
| Fan Type | Radial Fan |
| Compressed Air Supply | 5 – 6 bar |
| Quantity of Extraction Arms | 1 |
| Exhaust Arm Type | Flexible Exhaust Arm |
| Diameter of Extraction Arm | 150 mm |
| Length of Exhaust Arm | 2 m |
